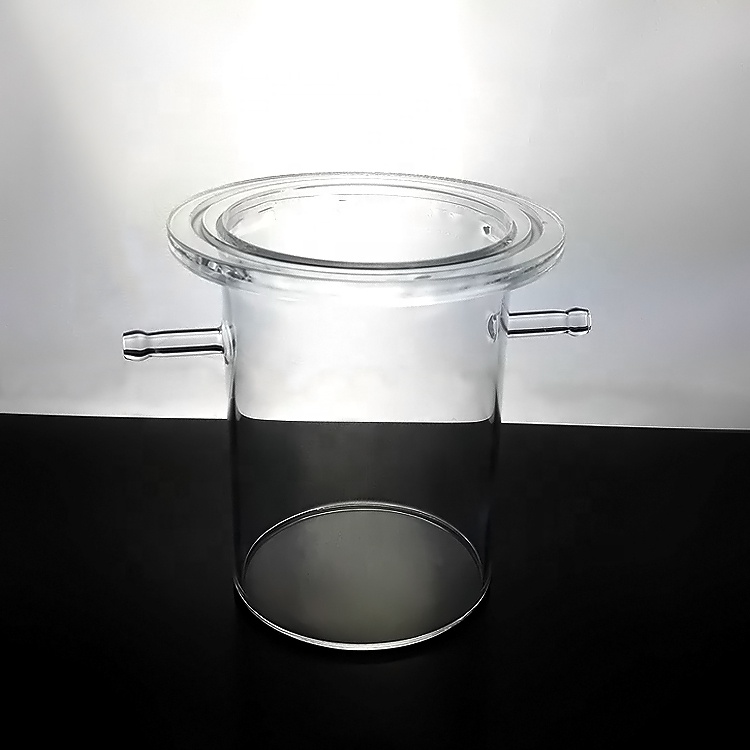

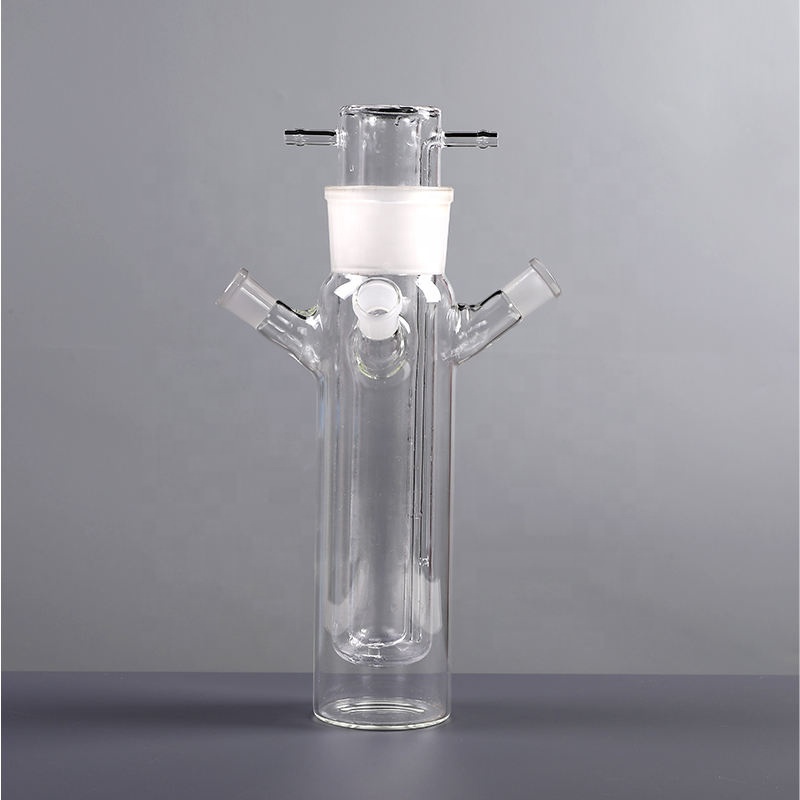

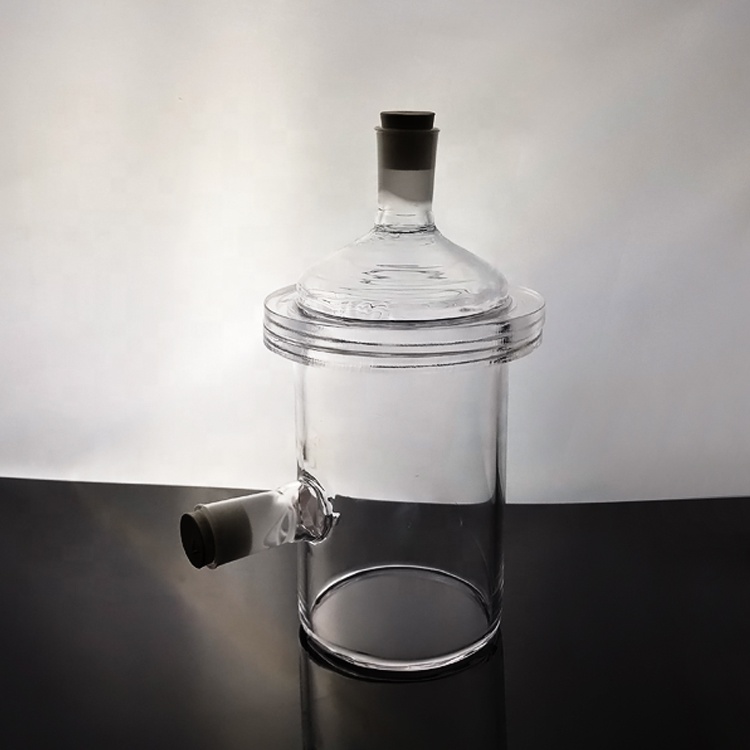

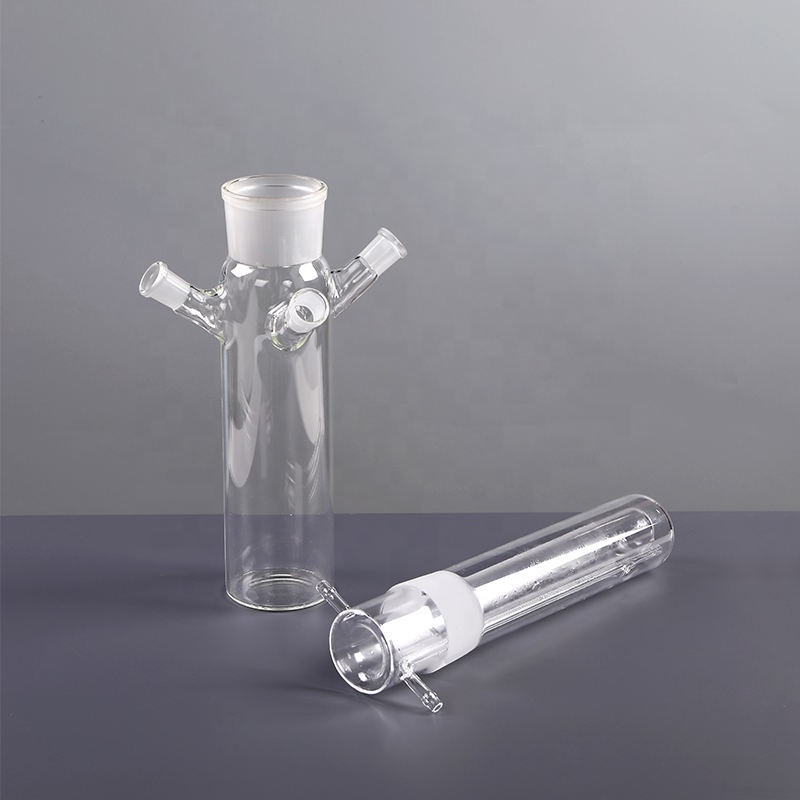

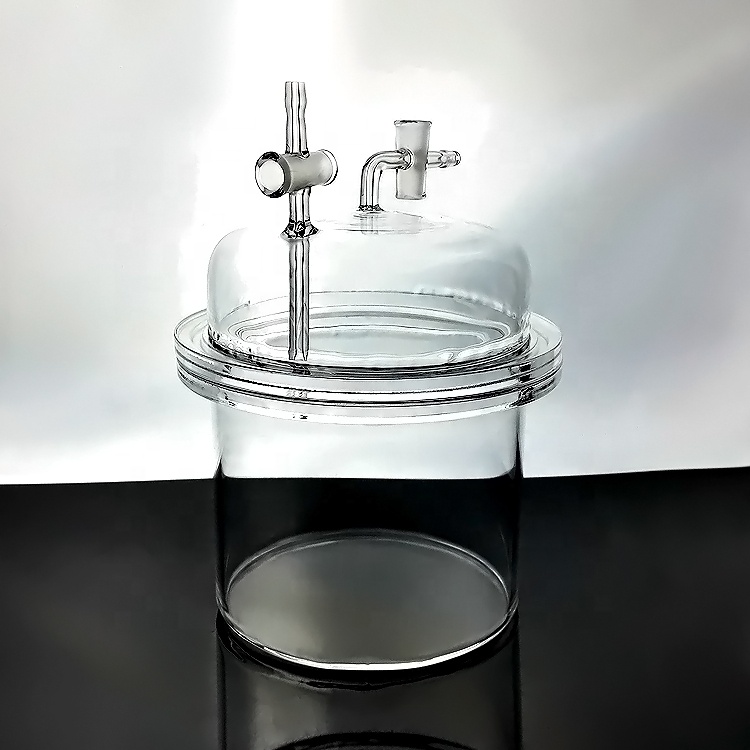

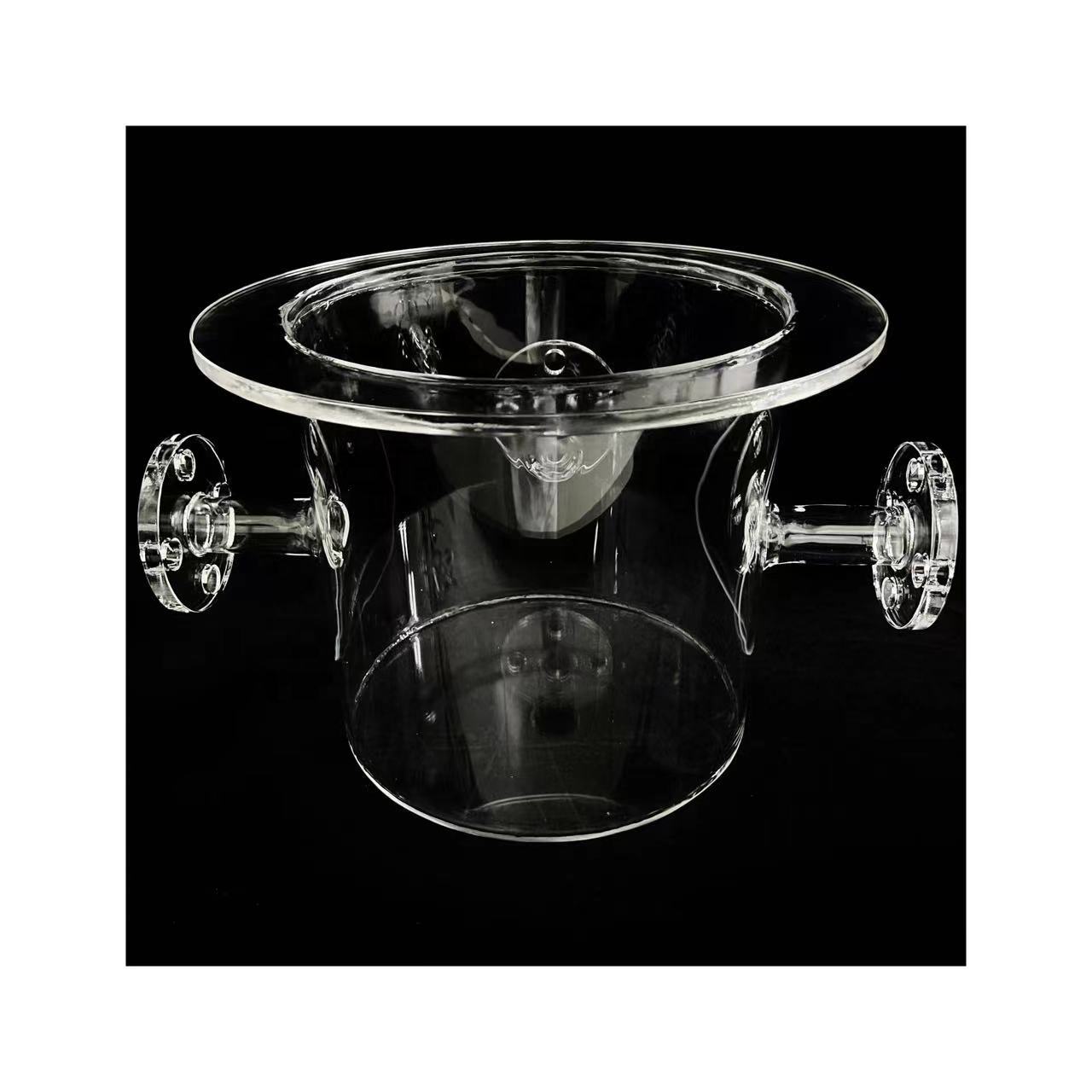

Customized High-purity Quartz Glass Reactor Container Bending Moulding Photocatalytic Degradation Internal Illumination Welding
Product Description
Key Attributes

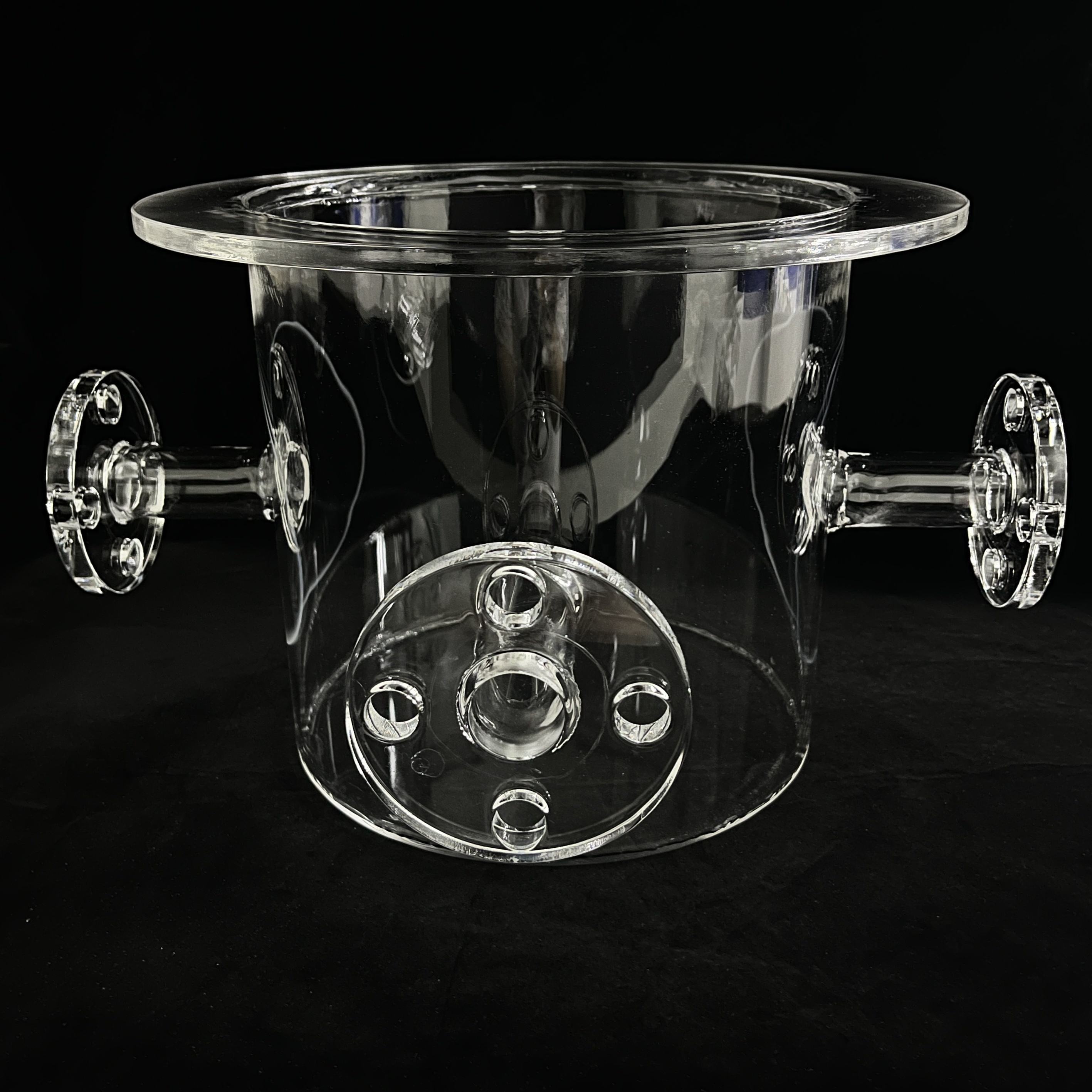

| Type | Photocatalyst Reaction Quartz Tank |
| Application | Semiconductor, optical, Photovoltaic, Chemical pipeline |
| Outside Diameter | 1mm-600mm |
Industry-Specific & Other Attributes
| Place of Origin | Jiangsu, China |
| Brand Name | GT Quartz |
| Model Number | GTq0301 |
| Product Name | Quartz Glass Tube |
| Material | SiO2 |
| SiO2 Purity | 99.99% |
| Color | Clear Transparent |
| Surface Treatment | Polished |
| Shape | Go both ways quartz tube |
| Ozone Content | Ozone Free |
| Processing Service | Bending, Welding, Punching, Polishing |
| Density | 2.2g/cm3 |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Melting Point | 1732℃ |
Samples
Maximum order quantity: 10 piece
Sample price: Pricing by size
Packaging Details
Plastic bubble / polystyrene foam sheet / carton / wooden pallet
Lead Time
| Quantity (pieces) | 1 - 10 | > 10 |
| Lead time (days) | 10 | To be negotiated |
Quartz Performance
Chemical Properties: Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material.
Thermal Properties: The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
Specification & Guitu Quartz Characteristics
| Brand | Guitu quartz |
| SiO2 Content | 99.99% |
| Density | 2.2 (g/cm³) |
| Degree of Hardness (Mohs scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
Guitu Quartz Glass Tube
We are a manufacturer of Transparent Quartz Tube Furnace.
Size & design: Accept customize according to different diameter, thickness, length or sending your drawing.
Advantage of Quartz Tube Furnace:
- 1. High purity: SiO₂ > 99.99%
- 2. Operating Temp: 1200℃; Soften Temp: 1730℃
- 3. Good thermal stability
- 4. Acid and alkali resistance
- 5. High transmittance
- 6. Excellent electrical insulator
Notes for Purchase and Use
1. There are many specifications of quartz products, so we can't necessarily mark the price, so different prices for different specifications, we can only take a physical picture to buyers as a reference you say the specifications, we give you a quote.
2. For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.
Product Parameters
| Product Name | Guitu Quartz glass tube |
| Material | SiO2 ≥ 99.99% |
| Color | Transparent or Opaque |
| Size Specifications |
1. Diameter: 3-600mm 2. Thickness: 0.75-10mm 3. Length: 10-3500mm 4. OEM: All different sizes can be done according to customer's demand. |
Customized Drawings & Samples
Factory support to figure to sample custom: Quartz handicraft, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc., Semiconductor accessories, Photovoltaic furnace tubes.
Product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.
Specializing in the production of:
- Semiconductor quartz square cylinder
- High purity quartz cleaning tank
- Large bore quartz tube
Company Profile
Lianyungang Guitu Quartz is a professional quartz glass manufacturer, the main products include:
1. Photovoltaic & Semiconductor Industry:
High purity high temperature resistant quartz tube, quartz diffusion tube, TC sleeve, quartz exhaust pipe, pipe diameter change cap, quartz condensation bottle, quartz liquid bottle, quartz door cover, quartz boat frame.
2. Quartz Tubes & Rods:
Large diameter transparent quartz tube, ozone-free quartz tube, UV filter quartz tube, quartz rod, quartz sheet, quartz ring, quartz lead and so on.
3. Optical & Laser Industry:
Quartz viewing mirror, quartz lens, quartz prism, quartz circular viewing window, square viewing window, ultraviolet quartz lens, infrared quartz lens, sapphire window.
4. Quartz Labware:
Quartz beaker, flask, triangle flask, spherical flask, volumetric flask, spherical cold instrument, snake cold instrument, still, high purity water horizontal still, high purity water secondary still, silicon tetrachloride rectification tower, garden bottom evaporation dish, flat bottom evaporation dish, test tube, surface dish, triangle funnel, separating funnel, etc.
Frequently Asked Questions (FAQ)
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check product quality.
Q2. What about the delivery time?
Within 15 days after receiving your deposit.
Q3. Do you have any MOQ limit?
Low MOQ: 1 pc for sample checking is available.
Q4. How to proceed an order in your factory?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for the formal order.
Fourthly, we arrange the production.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for the formal order.
Fourthly, we arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx, or TNT are optional for small orders, which usually take 3-5 days to arrive. Airline and sea shipping are also available.
