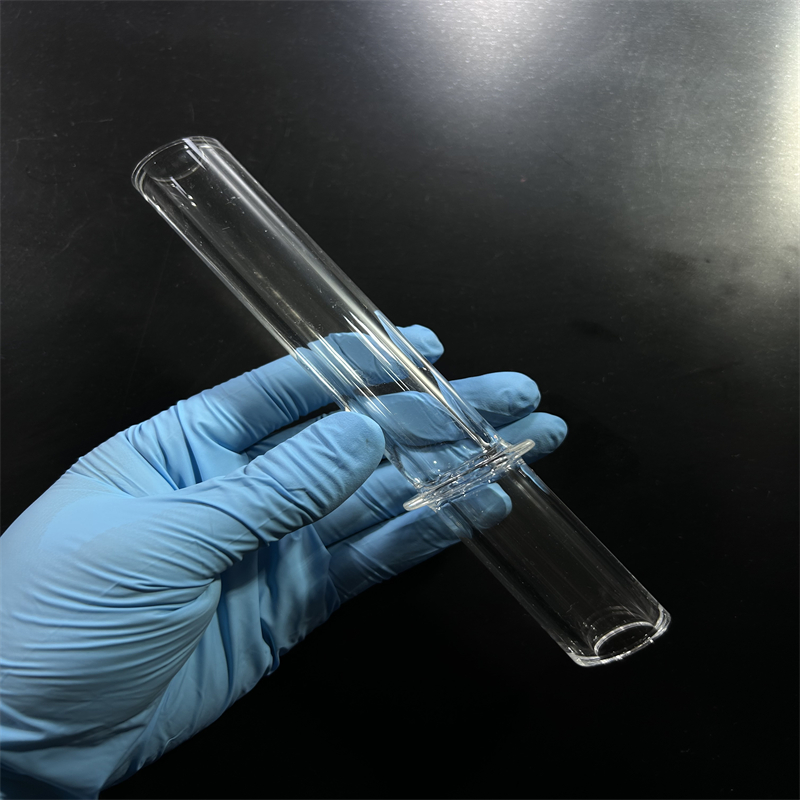

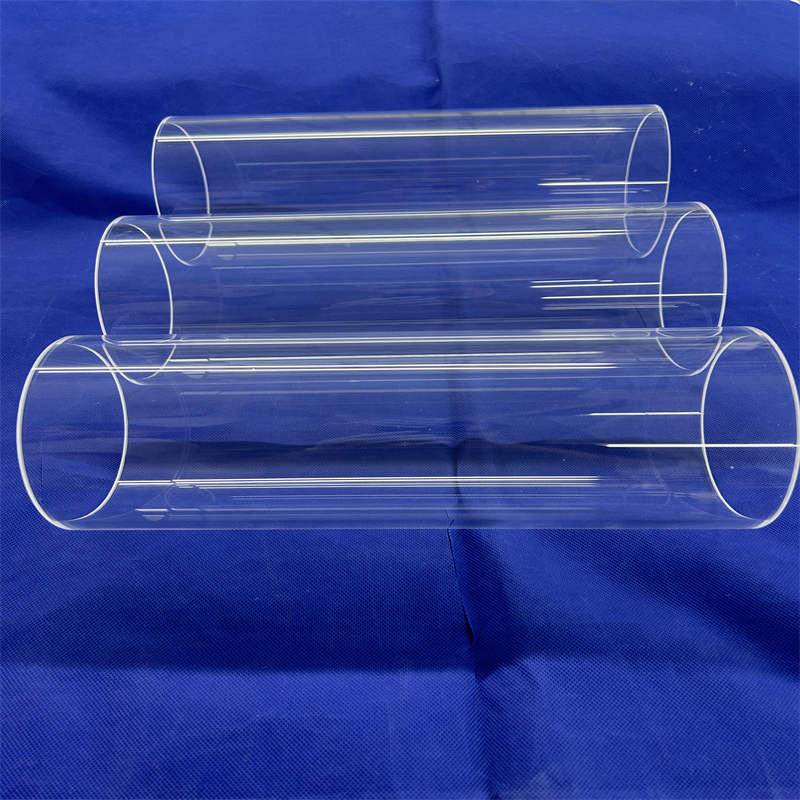

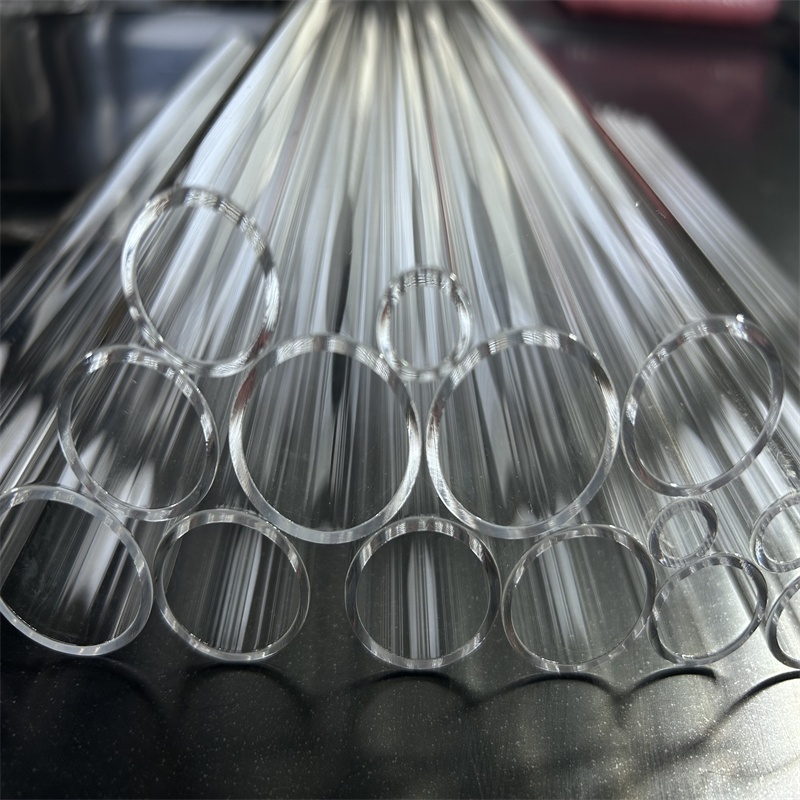

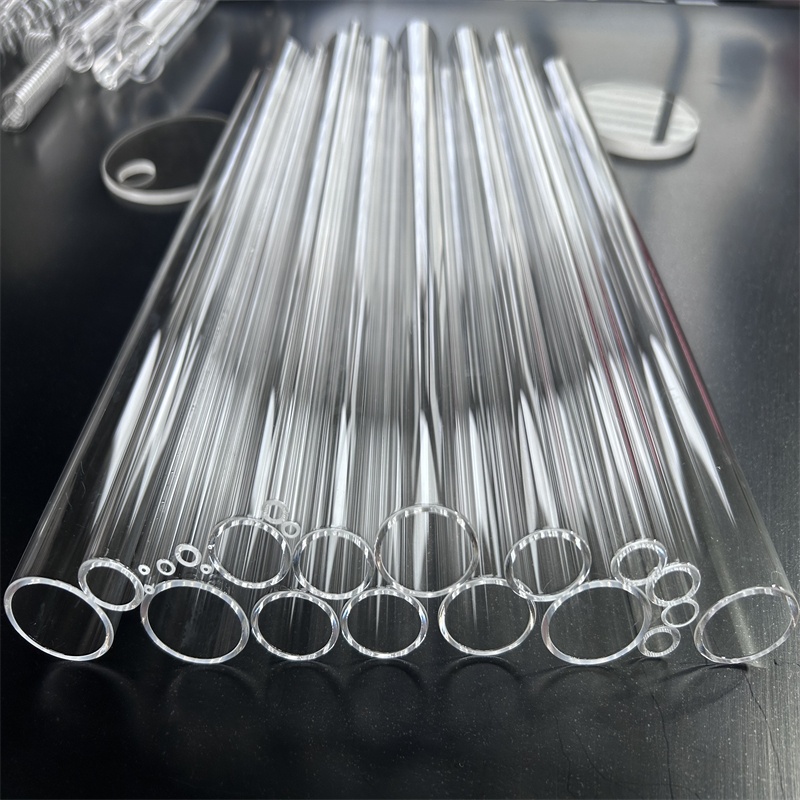

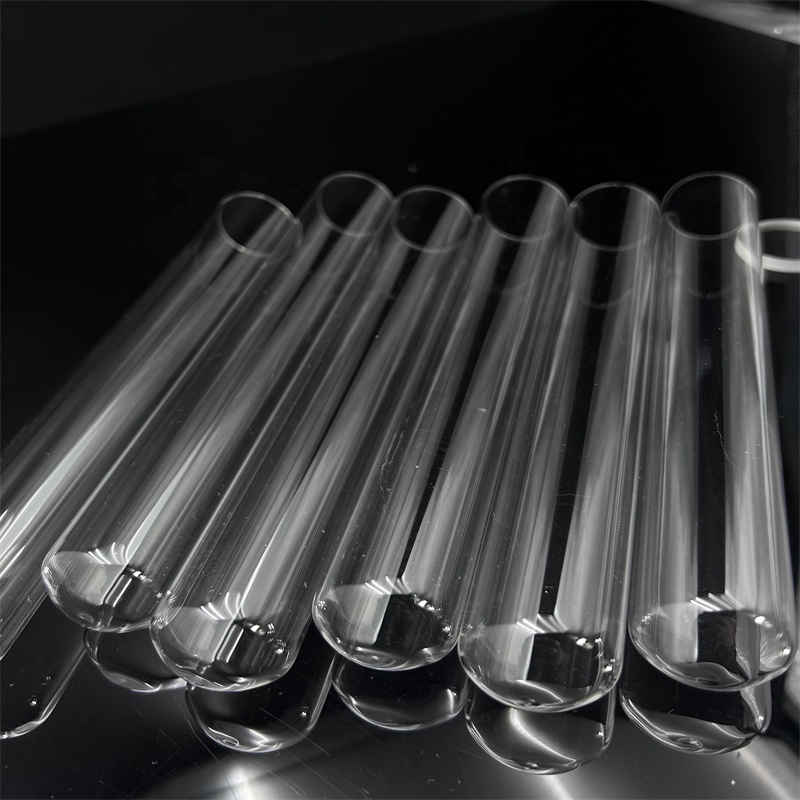

High Temperature Heat Resistant Clear 99.99% Pure Fused Quartz Twin Tube with Ozone Free Welding & Bending Services Custom Sizes
Product Description
Key Attributes & Specifications
| Type | Clear Quartz Pipe |
| Application | Semiconductor, Optical, Photovoltaic, Chemical Pipeline |
| Outside Diameter | 1mm - 600mm |
Industry-Specific Attributes
| Product Name | Quartz GlassTube | Brand Name | GT Quartz |
| Place of Origin | Jiangsu, China | Model Number | GTq0301 |
| Material / Purity | SiO2 ≥ 99.99% | Color | Clear Transparent |
| Surface Treatment | Polished | Shape | Go both ways quartz tube |
| Ozone Content | Ozone Free | Density | 2.2 g/cm³ |
| Melting Point | 1732℃ | Softening Point | 1630℃ |
| Working Temperature | 1100℃ | Annealing Point | 1180℃ |
| Processing Service | Bending, Welding, Punching, Polishing | ||
Samples & Production Lead Time
| Sample Service | Maximum order quantity: 10 piece | Sample price: Pricing by size |

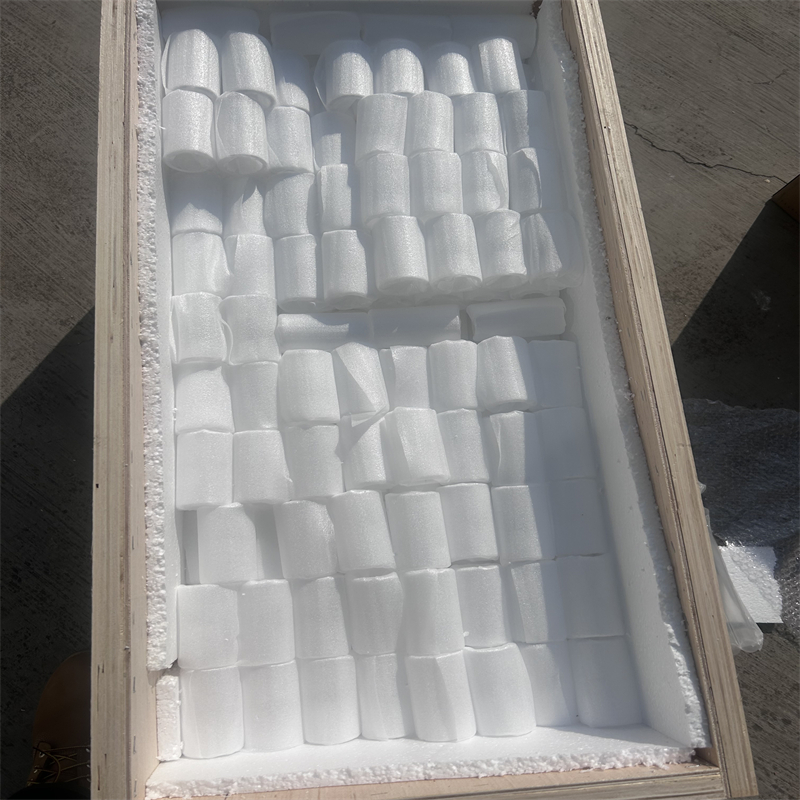

| Packaging Details | Plastic bubble / Polystyrene foam sheet / Carton / Wooden pallet |
| Quantity (pieces) | 1 - 10 | > 10 |
|---|---|---|
| Lead time (days) | 10 | To be negotiated |

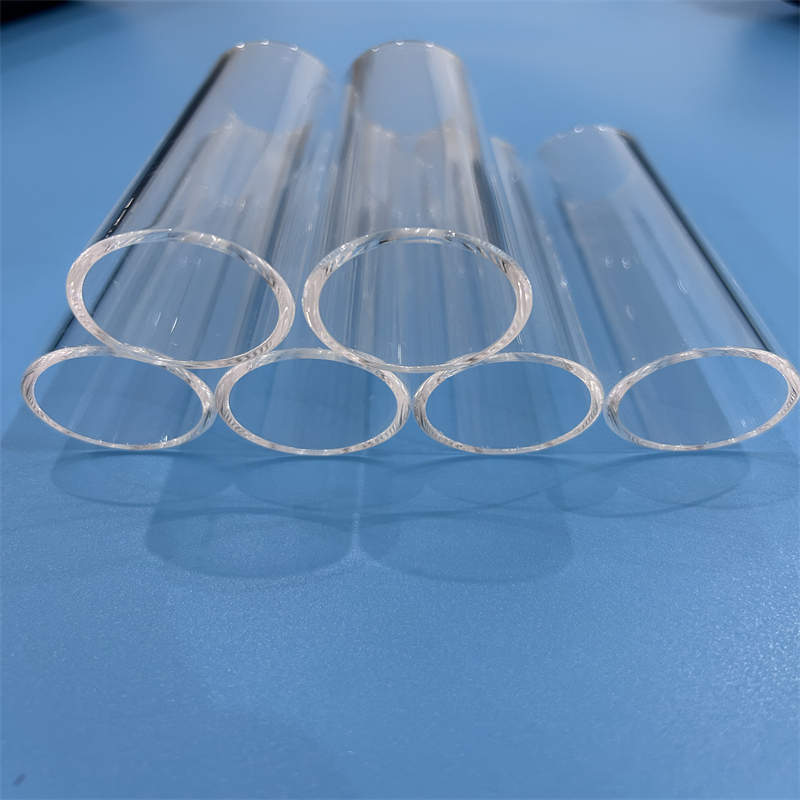

Quartz Performance
Chemical Properties:
Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material.
Thermal Properties:
The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of ordinary glass times. The standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
Guitu Quartz Glass Tube Characteristics

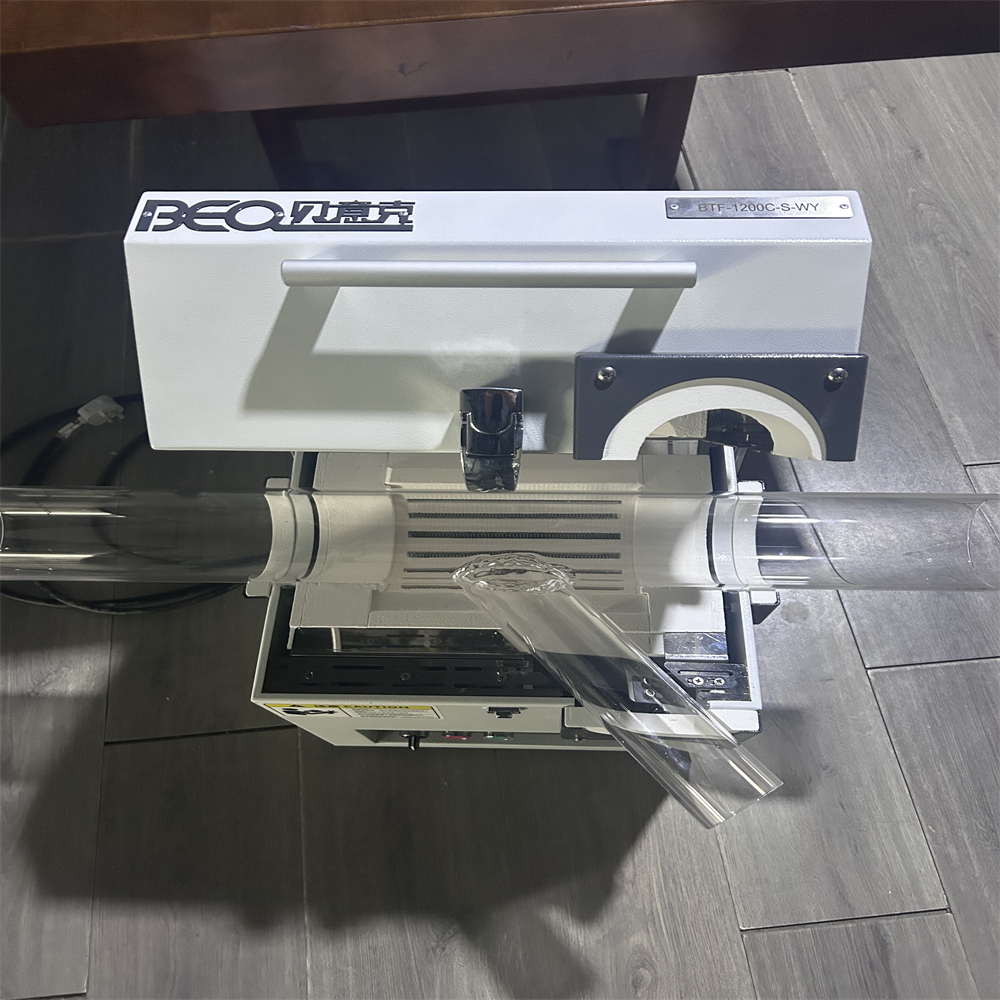

We are a manufacturer of Transparent Quartz Tube Furnace.
Size & Design: Accept customize according to different diameter, thickness, length or sending your drawing.
Advantage of Quartz Tube Furnace:
- High purity: SiO₂ > 99.99%
- Operating Temperature: 1200℃; Soften Temperature: 1730℃
- Good thermal stability
- Acid and alkali resistance
- High transmittance
- Excellent electrical insulator
| Brand | Guitu quartz | Degree of Hardness (Mohs Scale) | 6.6 |
| SIO2 | 99.99% | Density | 2.2 g/cm³ |
| Working Temperature | 1100℃ | Annealing Point | 1180℃ |
| Softening Point | 1630℃ | Melting Point | 1732℃ |
Notes for Purchase and Use
1. Specifications & Pricing: There are many specifications of quartz products, so we can't necessarily mark the price, so different prices for different specifications, we can only take a physical picture to buyers as a reference you say the specifications, we give you a quote.
2. Volume & Dimension Rules: For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.
Product Specifications
| Product Name | Guitu Quartz glass tube |
| Material | SiO2 ≥ 99.99% |
| Color | Transparent or Opaque |

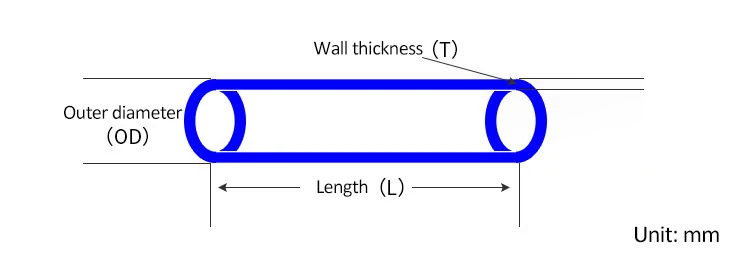

| Size & Customization |

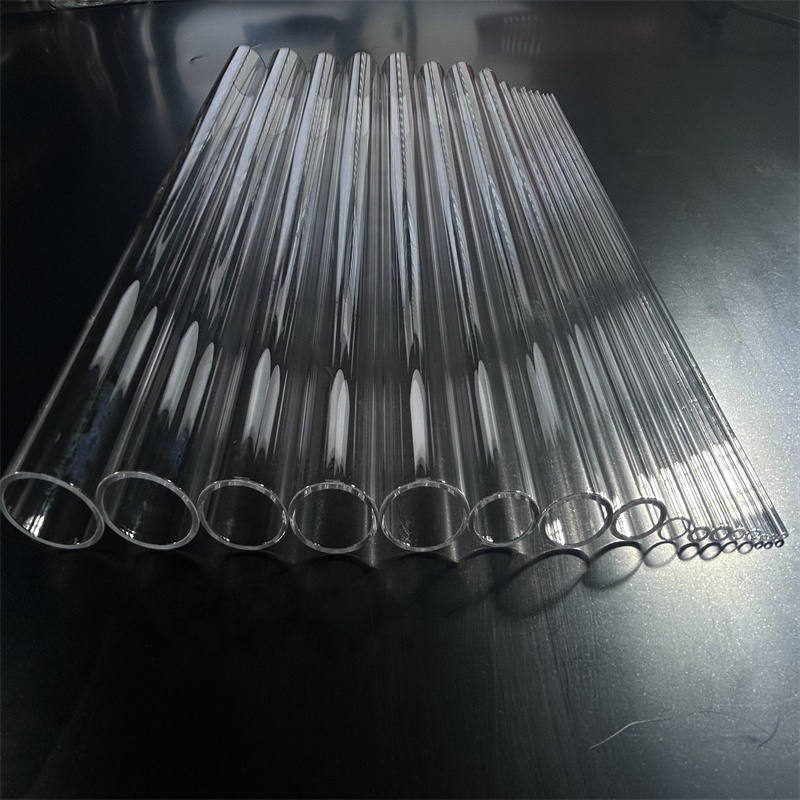

1. Diameter: 3-600mm 2. Thickness: 0.75-10mm 3. Length: 10-3500mm 4. OEM: All different sizes can be done according to customer's demand. |

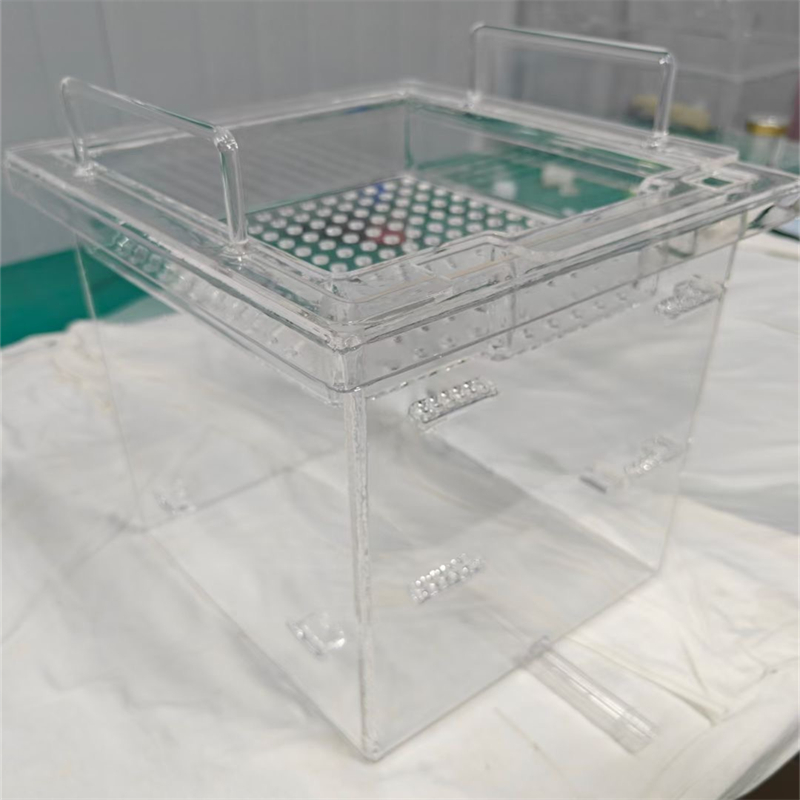

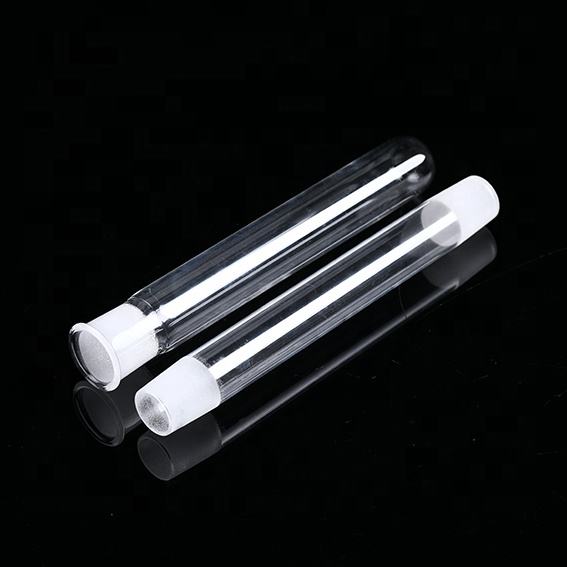

Accept Customized Drawings and Samples
Factory Capability: Factory support to figure to sample custom: Quartz handicraft, Ultraviolet sterilizing lamp, ultraviolet sterilization tube, ozone sterilization lamp shade, etc., Semiconductor accessories, Photovoltaic furnace tubes.
Application Fields: Product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.

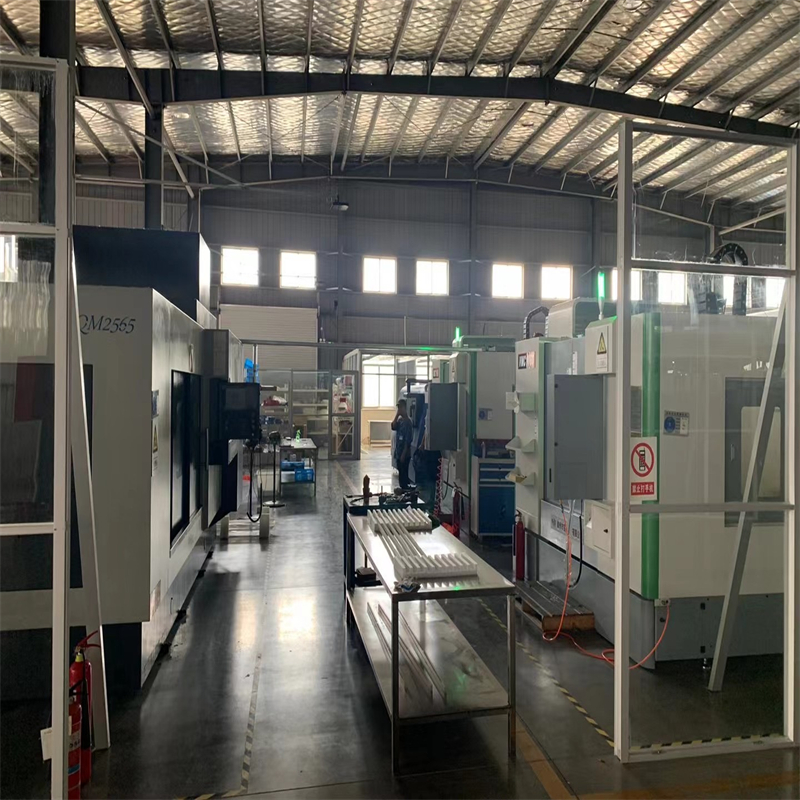

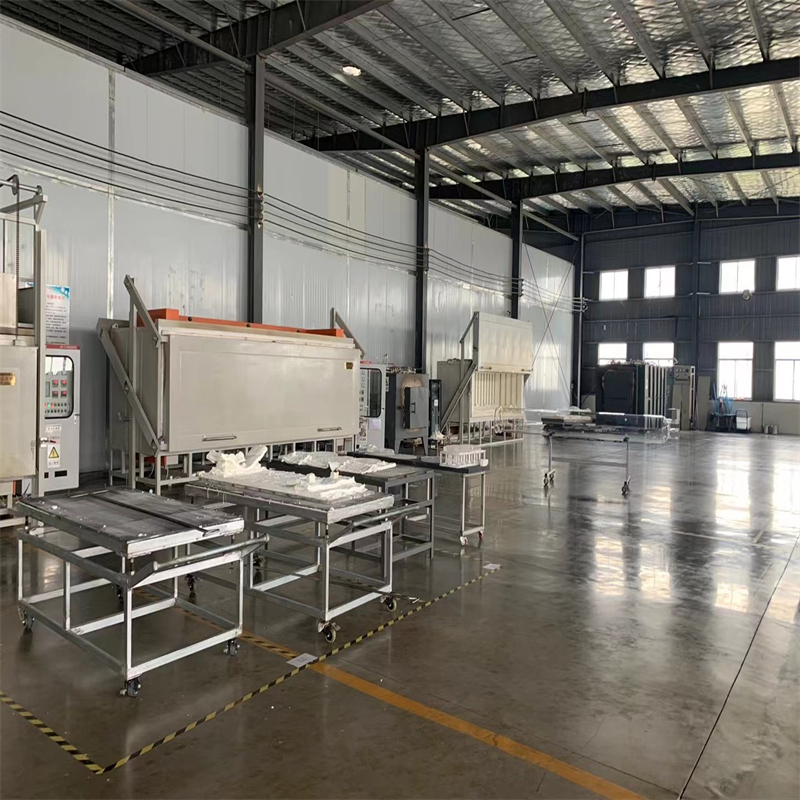

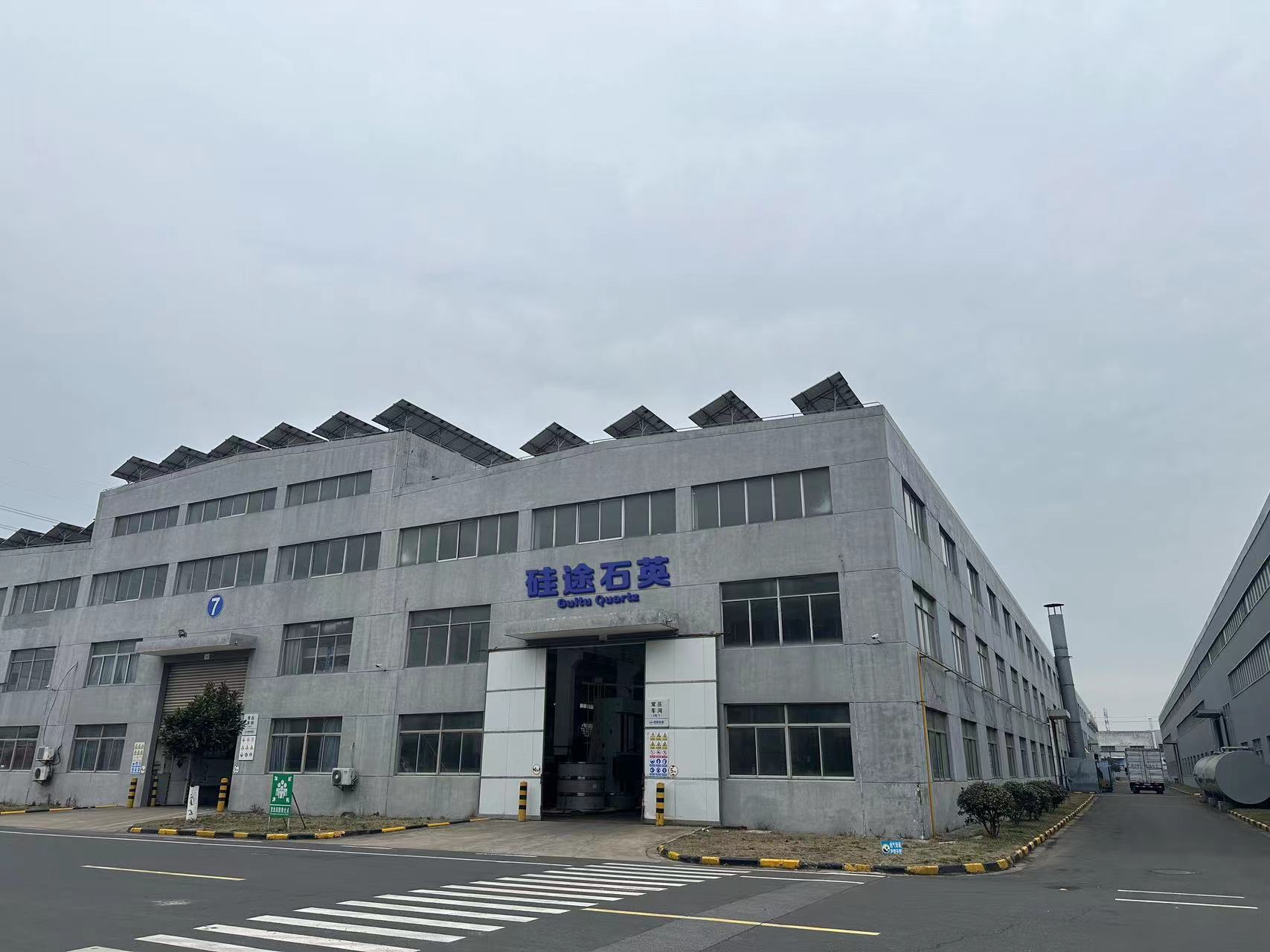

Company Profile
Lianyungang Guitu Quartz is a professional quartz glass manufacturer. Main products include:

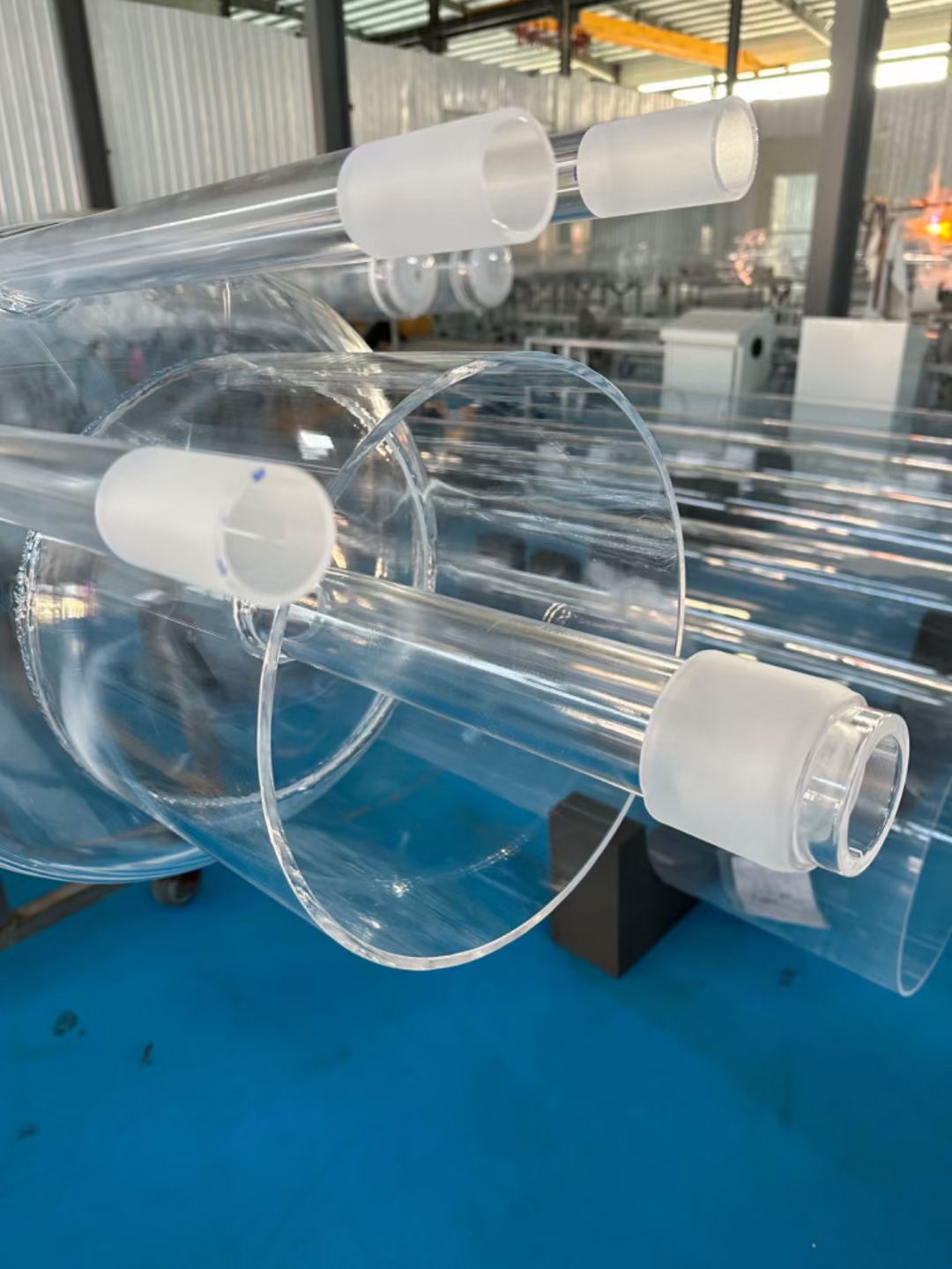

1. Photovoltaic & Semiconductor Industry: High purity high temperature resistant quartz tube, quartz diffusion tube, TC sleeve, quartz exhaust pipe, pipe diameter change cap, quartz condensation bottle, quartz liquid bottle, quartz door cover, quartz boat frame.

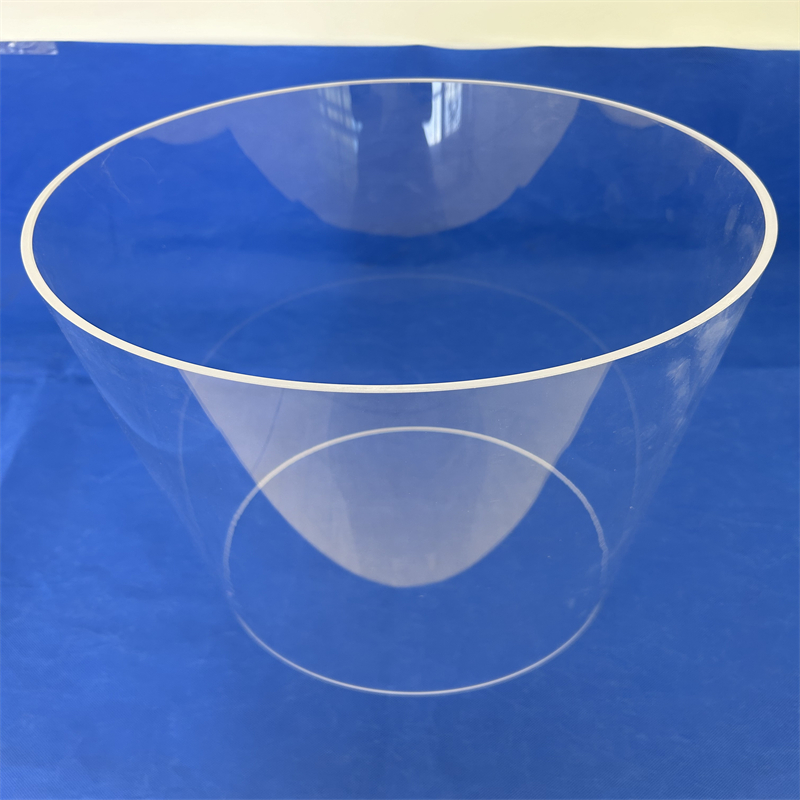

2. High Purity Quartz Tubes: Large diameter transparent quartz tube, ozone-free quartz tube, UV filter quartz tube, quartz rod, quartz sheet, quartz ring, quartz lead and so on.
3. Optical & Laser Industry: Quartz viewing mirror, quartz lens, quartz prism, quartz circular viewing window, square viewing window, ultraviolet quartz lens, infrared quartz lens, sapphire window.

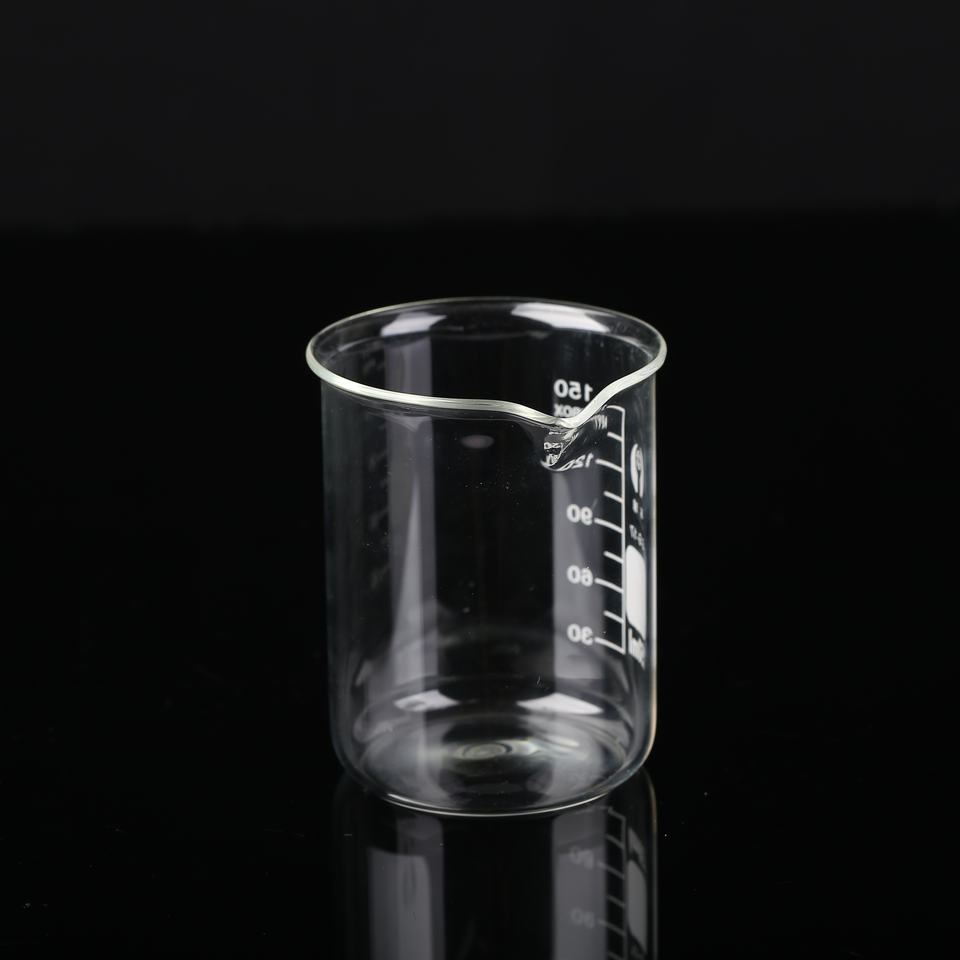

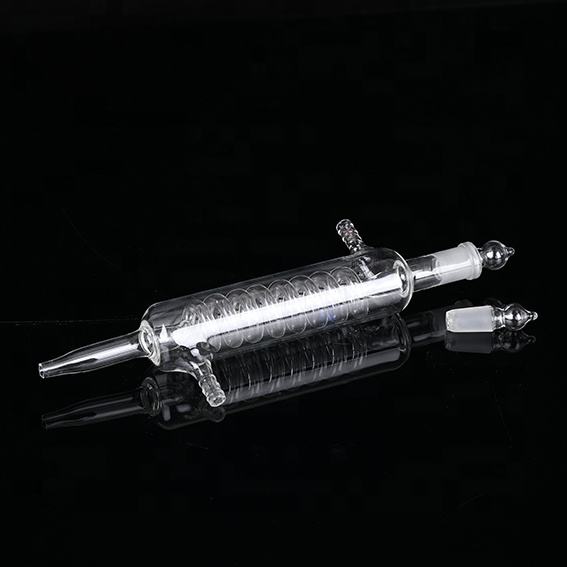

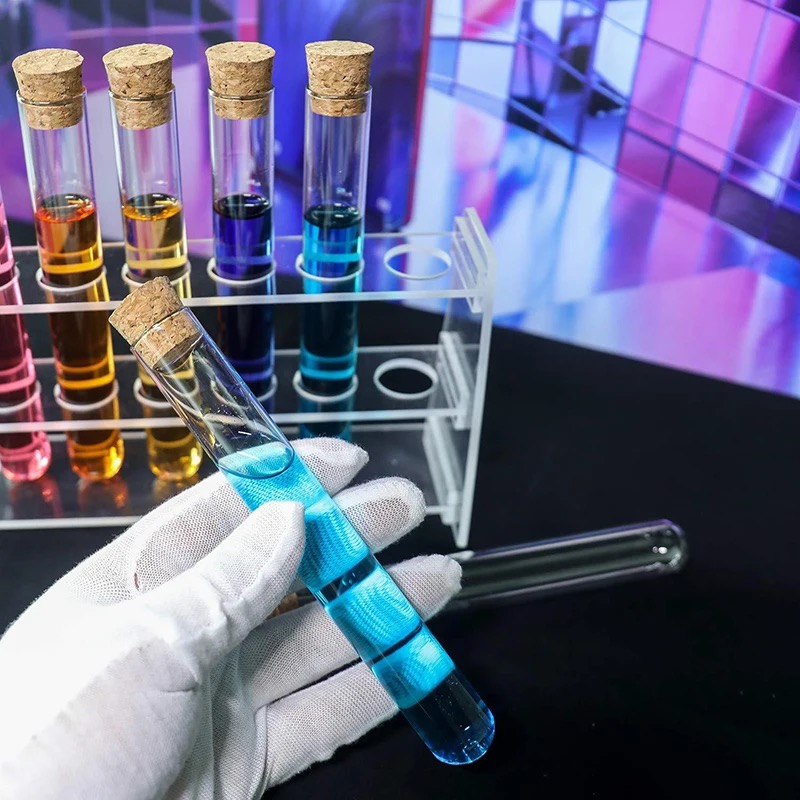

4. Laboratory Quartz Glassware: Quartz beaker, flask, triangle flask, spherical flask, volumetric flask, spherical cold instrument, snake cold instrument, still, high purity water horizontal still, high purity water secondary still, silicon tetrachloride rectification tower, garden bottom evaporation dish, flat bottom evaporation dish, test tube, surface dish, triangle funnel, separating funnel, etc.
Frequently Asked Questions
Q1 Can I have a sample order?
Yes, we welcome sample orders to test and check product quality.
Q2 What about the delivery time?
Standard orders are processed and delivered within 15 days after receiving the deposit.
Q3 Do you have any MOQ limit?
We provide a low MOQ policy; 1 pc for sample checking is available.
Q4 How to proceed with an order in your factory?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or provide our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
Q5 How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx, or TNT are optional for small orders. It usually takes 3-5 days to arrive. Airline and sea shipping are also available for bulk cargo.
Q6 Can you customize quartz products based on drawings or samples?
Yes, we support custom fabrication according to your technical drawings, samples, outer diameter, wall thickness, and specified length.
