Customize Size Thickness Twin Tube Clear High Purity Flange Quartz Tube Fused Silica Polished Flange Ring Bending Welding
Product Description
Key Attributes & Performance

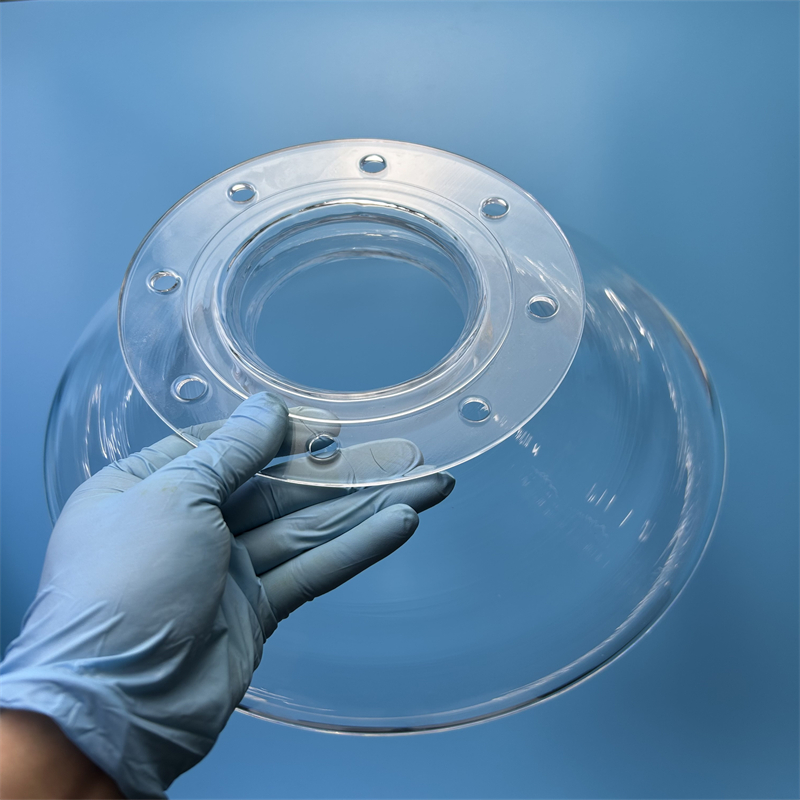

Quartz Performance
The quartz tube instrument is a special industrial technology glass made of high-purity silica, which serves as a critical foundational material. Quartz glass exhibits an exceptional series of physical and chemical properties suitable for electric fire barrels, electric baking stoves, electric heaters, and precision industrial heating equipment.
| Type | Quartz flange |
| Application | Semiconductor, optical, Photovoltaic, Chemical pipeline |
| Outside Diameter | Customized according to customer needs |
Product Advantages & Properties
Chemical Properties
Quartz glass is an acidic material. Except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and serves as an exceptional acid-resistant material.
Thermal Properties
The coefficient of thermal expansion of quartz glass is extremely small—only one-twelfth to one-twentieth of ordinary glass. Standard specifications stipulate that after the specimen is heated to 1200 degrees Celsius and rapidly quenched into cold water, it will not crack or burst over three consecutive cycles.
High Light Transmittance
Offers outstanding optical transmission across the entire spectrum from ultraviolet to infrared wavelengths, with visible light transmission rates reaching 93% or more in the ultraviolet spectral band.
Strong Plasticity
Quartz glass can be precision-machined at its softening temperature into a wide variety of shapes, allowing tailor-made customization strictly according to technical drawings.
Technical Specifications
| Brand Name | GT Quartz | Place of Origin | Jiangsu, China |
| Material | SiO2 (Silicon Dioxide) | Purity (SiO2) | 99.99% |
| Color | Clear Transparent | Surface Treatment | Polished |
| Shape | Go both ways quartz tube | Ozone Content | Ozone Free |
| Density | 2.2 g/cm³ | Melting Point | 1732℃ |
| Working Temperature | 1200℃ (2192°F) | Softening Point | 1630℃ |
| Annealing Point | 1180℃ | Strain Point | 1120°C (2048°F) |
| Processing Services | Bending, Welding, Punching, Polishing | ||
Industry-Specific Applications
We provide customized services tailored to specific industrial requirements:
Semiconductor etching diffusion stage
Viewing furnace cover
Infrared heater
Sterilizing lamp tube
Patio heater tube
Water tank heating lamp tube
Product Specification & Purchasing Guide
Notes for Purchase and Use
-
1. Custom Specifications & Quotes: There are numerous specifications for quartz products. Pricing varies according to dimensional tolerances. Physical pictures serve as references; contact us with your specifications for a prompt quote.
-
2. Dimension & Volume Scaling: Larger outer diameters and thicker walls naturally adjust unit costs. Higher order quantities qualify for competitive volume tier discounts.

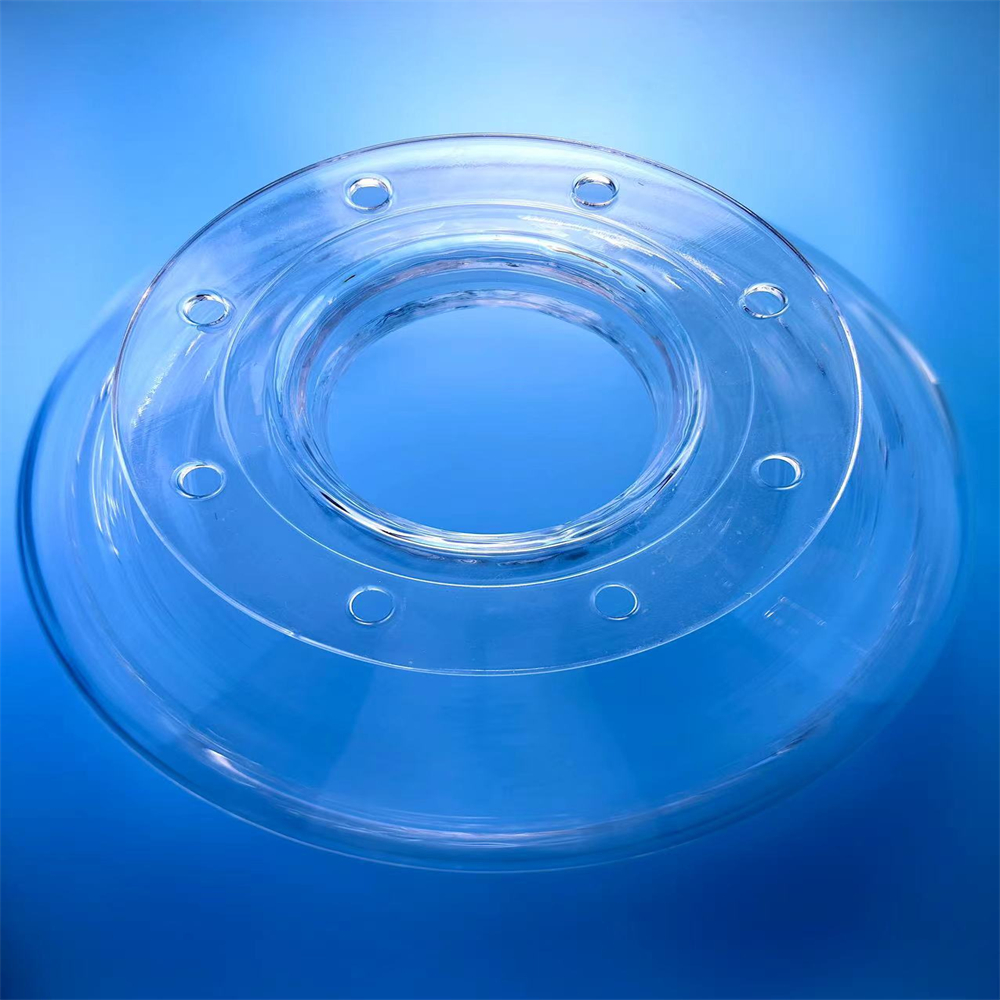

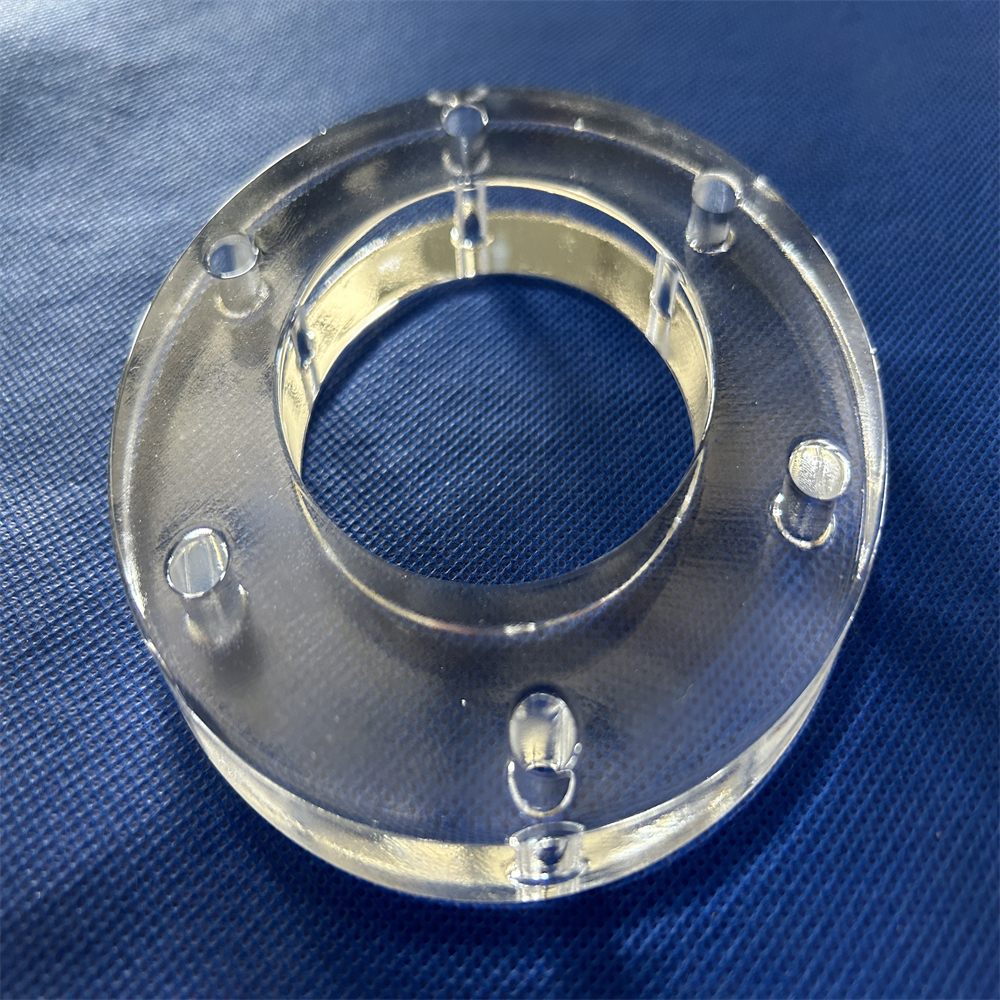

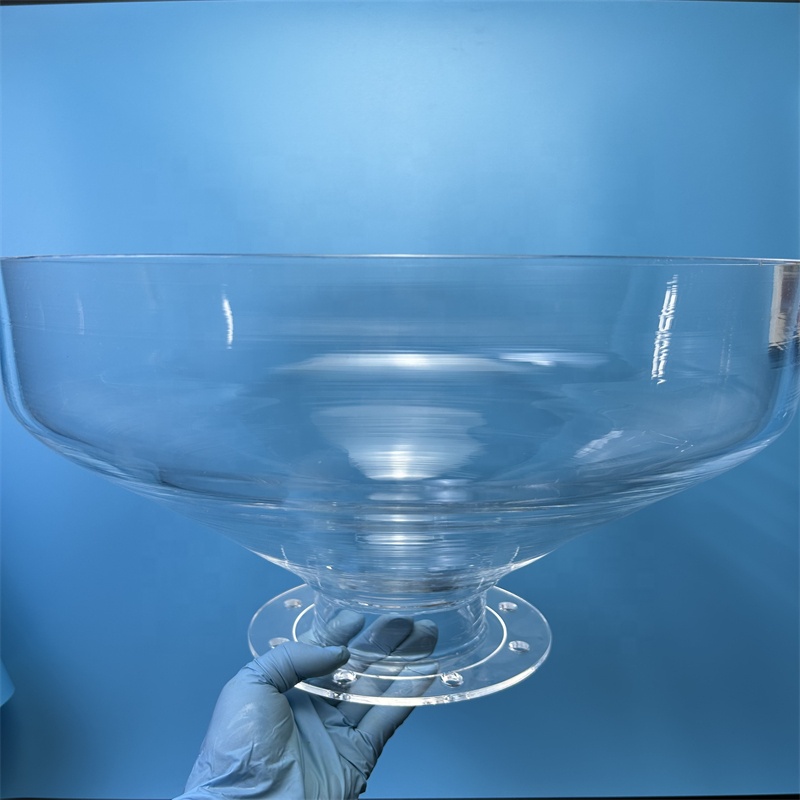

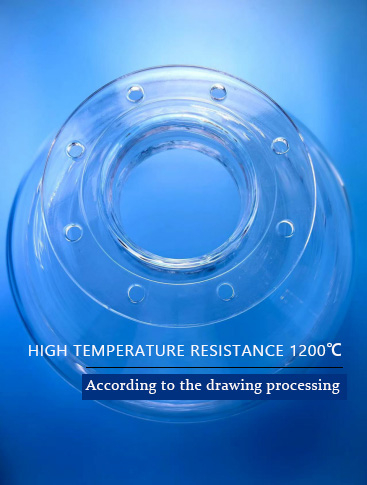

Product Display Gallery
Custom Drawings & Sample Fabrication
Direct Factory Customization: We accept designs, technical drawings, and samples for custom production, including: quartz handicrafts, ultraviolet sterilizing lamps, ultraviolet sterilization tubes, ozone sterilization lamp shades, semiconductor accessories, and photovoltaic furnace tubes.
Application Coverage: Widely applied across electric light sources, electric appliances, semiconductors, optical communications, military industry, metallurgy, building materials, chemicals, machinery, electrical power, and environmental protection.
Semiconductor Quartz Square Cylinders
High-Purity Quartz Cleaning Tanks
Large-Bore Quartz Tubes
Why Choose Guitu Quartz Glass Tube
We are an established direct manufacturer of Transparent Quartz Tube Furnaces. We accept custom orders strictly according to diameter, thickness, length, or supplied engineering drawings.
-
Ultra-High Purity: SiO₂ content exceeds 99.99%.
-
Extreme Temperature Resilience: Operating temperature 1200℃; Softening temperature 1730℃.
-
Superior Thermal Stability: Extreme resistance to thermal shock.
-
Corrosion Resistance: High resistance to acids and alkalis.
-
Optical Clarity: High transmission across UV, visible, and IR spectrums.
-
Dielectric Strength: Functions as an excellent electrical insulator.
Packaging & Quality Inspection Standard
| Packaging Details | Plastic bubble wrap / Polystyrene foam sheets / Heavy-duty export carton / Wooden pallet & crate |
Step 1: Pre-shipment Quality Check
Comprehensive inspection of product appearance and rigorous size measurement.
Step 2: First Layer of Packaging
Wrapped securely with pearl cotton shock-absorbing liner or bubble paper.
Step 3: Second Layer of Protection
Dense foam boards laminated around all sides of cargo to prevent impacts.
Step 4: Outer Packing
Packed into reinforced corrugated cardboard boxes or custom wooden export cases.
Company Profile & Manufacturing Facility
Lianyungang Guitu Quartz Co., Ltd. is a professional quartz glass manufacturer. Main product lines include:
-
Photovoltaic & Semiconductor Industry: High-purity high-temperature resistant quartz tubes, quartz diffusion tubes, TC sleeves, quartz exhaust pipes, pipe diameter change caps, quartz condensation bottles, quartz liquid bottles, quartz door covers, and quartz boat frames.
-
Tubes & Shapes: Large-diameter transparent quartz tubes, ozone-free quartz tubes, UV filter quartz tubes, quartz rods, quartz sheets, quartz rings, and quartz leads.
-
Optical & Laser Applications: Quartz viewing mirrors, quartz lenses, quartz prisms, circular/square quartz viewing windows, ultraviolet quartz lenses, infrared quartz lenses, and sapphire windows.
-
Laboratory Quartz Ware: Beakers, flasks, triangular flasks, spherical flasks, volumetric flasks, condensation coils, high-purity horizontal and secondary water stills, silicon tetrachloride rectification towers, evaporation dishes, test tubes, surface dishes, and funnels.
Numerical Control Machine Tool
Connected Furnaces
Two-End Flame Polishing
Small Lathe Machining
Large Size Quartz Tube
Secondary molding quartz tube warehouse
Quartz Tube Inventory Warehouse
Precision Welding
Secondary Forming
Frequently Asked Questions (FAQ)
Q1: Can I place a sample order first?
Yes, sample orders are welcomed to inspect quality, physical integrity, and optical performance prior to mass production.
Q2: What is the typical delivery lead time?
Standard orders are typically dispatched within 7 days after the confirmed receipt of deposit.
Q3: Do you have an MOQ (Minimum Order Quantity) limit?
We offer low MOQ thresholds; even 1 pc for initial sample verification is accepted.
Q4: How does your factory handle the order process?
First, submit your detailed technical requirements or application notes. Second, we provide a quotation based on specifications. Third, upon sample approval, deposit is placed. Fourth, our factory executes production.
Q5: What shipping methods are available and what are transit times?
Small orders ship via express courier (DHL, UPS, FedEx, or TNT) taking 3-5 business days to arrive. Sea freight and air cargo solutions are also available for bulk consignments.
Q6: Can quartz tubes be customized to specific drawings?
Yes, full customization is available for diameter, wall thickness, length, and secondary fabrications like bending, flanging, punching, and optical polishing.
