Specialized Fused Quartz Glass & Optical Assemblies
Precision-ground spectrophotometer cuvettes, reaction tubes, and laser-machined optical quartz designed to withstand rigorous thermal, chemical, and spectroscopic stress.

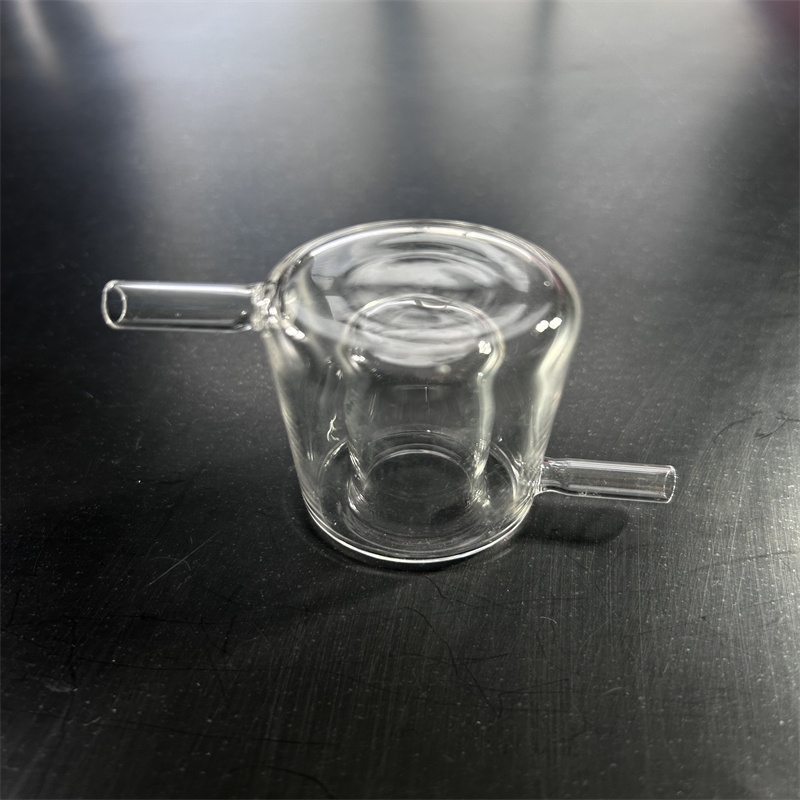

Custom 99.99% Pure Ozone Free High Temperature Resistant Quartz Glass Reactor Twin Tube Bending Welding Services for Laboratory
Thermal-resistant twin reactor tubes engineered for high-temperature synthesis, catalysis analysis, and specialized laboratory applications.
Customize Size Thickness Twin Tube Clear High Purity Flange Quartz Tube Fused Silica Polished Flange Ring Bending Welding
High-integrity fused silica tubing coupled with polished quartz flanges, providing hermetic vacuum sealing under extreme thermal loads.

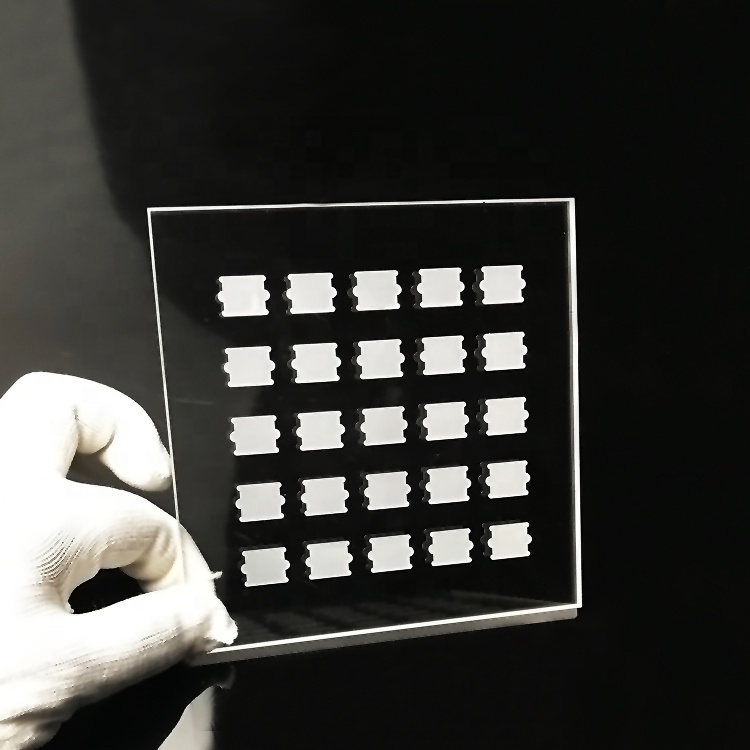

Factory Custom Fused Quartz Glass Circular High Quality High Temperature Welding Cutting XRD Sample Holder Optics Clear
Zero-background XRD sample holders polished to optical planarity, preventing background scattering in complex crystalline phase evaluations.
China Supplier High Temperature Transparent UV Quartz Glass Plate Polished Fused Quartz Disc Welding Cutting Optics 1100C Work
Double-side optically polished UV-grade discs sustaining continuous 1100°C operating temperatures with minimal wavefront distortion.

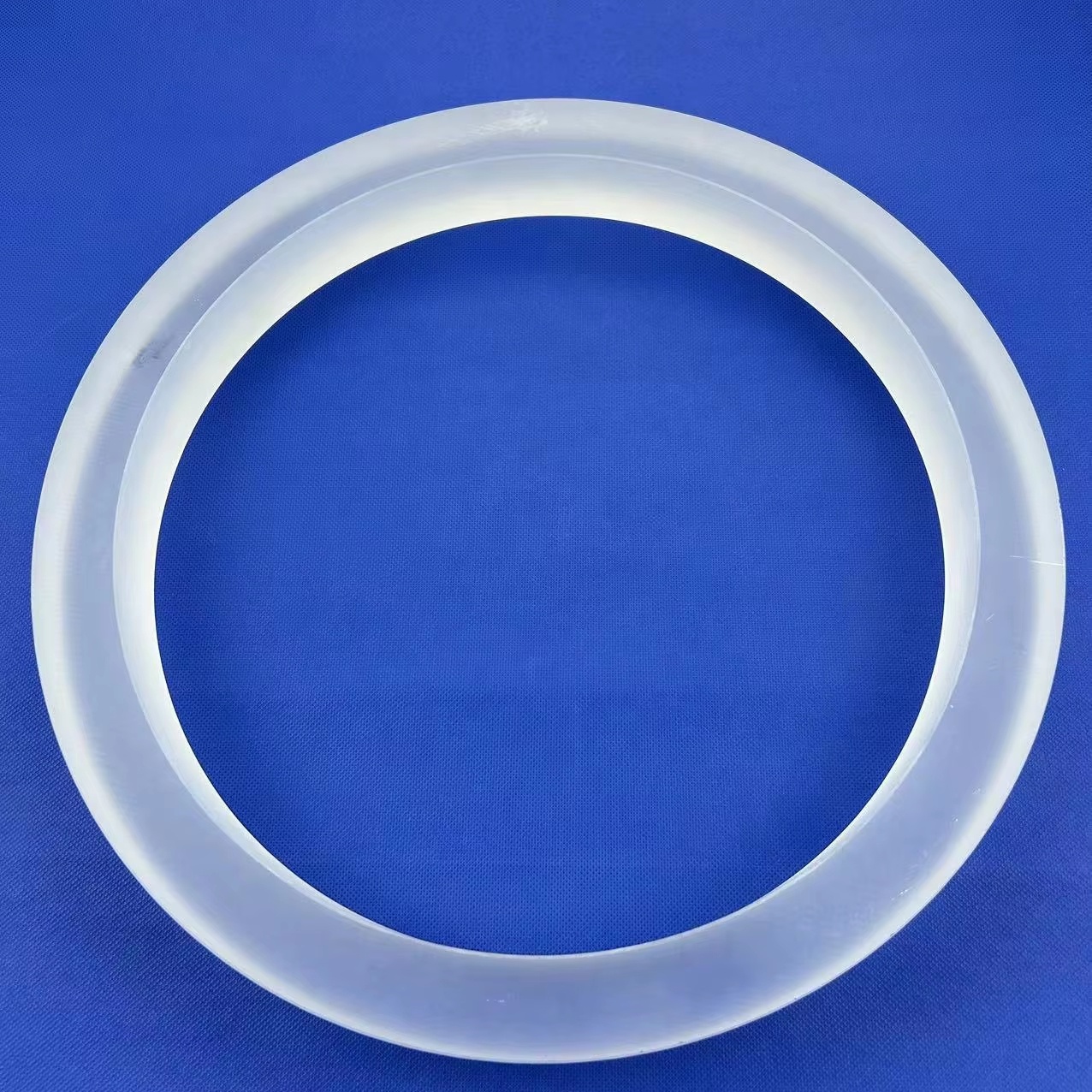

Custom Coated 99.99% Pure Quartz Rings for Semiconductor CVD Optics Applications High Pressure Moulding/Bending/Welding/Cutting
Chemical vapor deposition (CVD) compatible quartz rings with micron-level surface finishes and low trace-element contamination.
Factory Custom Both Ends Polished High Purity Transparent Quartz Twin Tube Bending Moulding Welding Cutting Capabilities
Custom double-bore fused quartz tubing with fire-polished optical terminals designed for heating elements and multi-channel analytical flow cells.
High Temperature Heat Resistant Clear 99.99% Pure Fused Quartz Twin Tube with Ozone Free Welding & Bending Services Custom Sizes
Hydroxyl-controlled fused quartz tube structures designed for zero thermal deformation and enhanced life cycles under oxidizing atmospheres.
Chemisorption BET Test High Pressure 99.99% Pure Ozone Free Clear Quartz Glass Twin Tube Bending Welding Services Quantachrome
High-precision BET gas adsorption sample cells featuring calibrated bulb volumes and tight dimensional tolerances for exact surface area calculations.
Precision Spectroscopy & Fused Silica Material Science
A comprehensive engineering guide to optical quartz grades, optical transmission boundaries, and dimensional tolerances for Moldovan laboratories.
In quantitative spectroscopic analysis, the optical performance of a quartz cuvette is determined entirely by the purity of the synthetic silicon dioxide (SiO₂) matrix and the thermal fusion methodology utilized during manufacturing. Laboratories across the Republic of Moldova, operating within academic institutes, environmental agencies, and wine-testing complexes, frequently encounter spectral skewing when employing standard optical glass (such as borosilicate) below 340 nm. Fused silica delivers a broad optical transparency window ranging from deep ultraviolet (UV) through near-infrared (NIR), ensuring uncompromising photonic clarity.
| Optical Grade | Primary Material Base | Spectral Transmission Range | Core Analytical Applications | Key Physical Tolerance |
|---|---|---|---|---|
| JGS1 (Far UV Grade) | Synthetic Fused Silica | 185 nm – 2500 nm (>85% @ 200 nm) | UV-Vis Spectrophotometry, DNA/Protein Quantification, HPLC Detectors | Path Length: ±0.005 mm |
| JGS2 (Standard Optical) | Natural Fused Quartz | 220 nm – 2500 nm (>80% @ 254 nm) | Visible Light Photometry, Colorimetry, Routine Industrial Titration | Path Length: ±0.010 mm |
| JGS3 (Infrared Grade) | Water-Free Synthetic Quartz | 260 nm – 3500 nm (OH ≤ 5 ppm) | FTIR Spectroscopy, NIR Wine Analysis, Petrochemical Testing | Parallelism: < 20 arcsec |
Unlike standard lab glass formed via low-cost sintering or mechanical adhesive bonding, our spectrophotometer cells and cuvettes utilize proprietary molecular high-temperature thermal fusion. Adhesive-bonded cells degrade rapidly when exposed to organic solvents like acetone, acetonitrile, or concentrated acids, resulting in optical boundary leaks and sample contamination. Thermal fusion creates an integrated, monolithic molecular bond across all optical surfaces, guaranteeing indefinite structural survival in harsh chemical matrices.
Localized Application Scenarios Across Moldova
Tailored quartz solutions serving Moldova's strategic economic and scientific development hubs.
Viticulture & Oenology Research
Moldova is internationally celebrated for viticulture. Wineries in Cricova, Purcari, and Mileștii Mici utilize our UV-Vis cuvettes for spectrophotometric phenolics screening, anthocyanin profiling, and sulfur dioxide determination to guarantee EU-compliant export vintages.
Pharmaceutical & Clinical Diagnostics
Laboratories in Chișinău, including centers certified to ISO/IEC 17025, rely on JGS1 sub-micro flow cells and matched cuvettes for HPLC detection, active pharmaceutical ingredient (API) stability assays, and clinical photometer calibrations requiring certified optical path transmission.
Environmental & Agrochemical Testing
Monitoring watershed health along the Dniester and Prut rivers involves tracing pesticide residues, heavy nitrates, and industrial runoffs. Our zero-fluorescence quartz cells allow state monitoring institutes to execute micro-level colorimetric testing without signal interference.
Market Trends & Quality Evolution in Moldova
How regulatory shifts, European alignment, and supply chain updates impact optical quartz procurement.
EU Harmonization Demands
As Moldova deepens its economic ties with the European Union, testing facilities must adhere to EN and European Pharmacopoeia (Ph. Eur.) guidelines, increasing demand for matched cuvettes with transmission certificates.
Direct Factory Sourcing
Public procurement systems (MTender) and private testing entities are moving away from costly Western European intermediaries, turning directly to China's leading manufacturers to cut operational procurement costs by 35-50%.
Micro-Volume Spectroscopy
Modern analytical biochemistry requires sample conservation. Demand is shifting rapidly toward micro (0.7 ml) and sub-micro (50 μl) volume quartz cuvettes equipped with blackened self-masking quartz walls to eliminate stray reflections.
Modernized Cold-Chain Packing
Given trans-Eurasian transport corridors via Chișinău International Airport (KIV) or Constanța maritime paths, regional buyers prioritize custom impact-dampening foam packaging capable of withstanding rough handling.
Manufacturing Direct from China's "Crystal Capital"
Operating from Donghai County, Jiangsu, Zunex Quartz Products Co., Ltd. combines advanced processing technologies with comprehensive international export reliability.
Integrated Engineering & Custom Machining
With fully equipped hot-working flame shops and cold-machining laser suites, we provide laser drilling, precision micro-grooving, optical polishing, and flame welding. Every drawing is reviewed by an experienced engineer within 2 hours to confirm tight dimensional tolerances before cutting starts.
Certified Raw Material Purity
We source authentic natural crystals and synthetic fused silica with SiO₂ purity ≥ 99.99%. Every optical cuvette batch is inspected for thermal bubble free grade, scratch-dig tolerances (40/20 standard), zero micro-cracks, and absolute transmittance fidelity across the selected wavelength spectra.
Verified Global Export Track Record
Holding a verified 100% response rate, a 43% customer repeat order rate on Alibaba.com, and an annual export revenue between US$2.5M – US$5M, we secure our fragile consignments in customized multi-layer foam packing cases guaranteed to survive international transit to Moldova safely.
Frequently Asked Questions by Moldovan Buyers
Practical answers covering international logistics, customs regulations, optical selection, and technical warranties.
How are cuvette orders shipped safely to Chișinău, Moldova?
We routinely dispatch high-precision quartz components using express air services (DHL Express, FedEx, UPS) directly to Chișinău Airport within 5–8 business days. Cuvettes are seated in individual velvet-lined or EVA-molded shockproof boxes, packed within rigid, corrugated outer export cartons to eliminate breakage risks completely.
What documentation is provided for Moldovan customs clearance?
All commercial exports are provided with a complete set of documentation: Commercial Invoice with designated Harmonized System (HS) Codes (e.g., 7017.10 for fused quartz laboratory glassware), Packing List, Certificate of Origin (CO), and Factory Quality Inspection Certificates outlining pathlength verification and transmittance curves.
How do we verify matched pairs for differential spectrophotometry?
For double-beam instruments used in pharmaceutical or high-precision oenology workflows, we supply strictly matched cuvette sets. Our optical spectrophotometers match transmission tolerances to within ±0.5% at specified wavelengths (e.g., 200 nm, 220 nm, or 546 nm), preventing systematic baseline offset errors.
Can you customize cuvettes or sample holders to non-standard drawings?
Yes. Customization to engineering CAD drawings (PDF, DWG, STEP) is our core competence. Whether you need specialized pathlengths (e.g., 0.1 mm, 2 mm, 50 mm, 100 mm), screw caps with PTFE septa for anaerobic testing, water-jacketed thermal cells, or flow-through apertures, our technical team verifies manufacturability before production.
Equip Your Laboratory with China's Premier Quartz Ware
Discuss your specifications, technical tolerances, or custom drawing requirements directly with our senior quartz fabrication engineers today.
